EIKOS-UV™

연구와 산업 분야의 일상적인 고성능 3D 나노 분석을 가능하게 하는 Atom Probe 원자단층현미경 장비 및 애플리케이션에서 거둔 30년간의 성공을 기반으로 CAMECA는 빠른 합금 개발 및 나노 단위의 재료 연구를 위해 Atom Probe 현미경인 EIKOS-UV™를 개발했습니다.
  • 제품 개요 +


    EIKOS Atom Probe의 기능:

    • 미세 구조의 나노 단위 특성화 분석을 통한 삼차원 단층분석
    • 높은 효율로 고성능 공간 분해능 단원자 검출
    • 모든 원소와 그 동위원소에 대해 동일한 감도
    • 정량적 조성 측정(서브 나노미터에서 거의 마이크론 단위까지)
    • 전압 또는 전압과 레이저 구성에서 사용 가능
    • 표준 시료 준비 방법


    EIKOS은 다음과 같은 2가지 구성으로 사용 가능합니다.

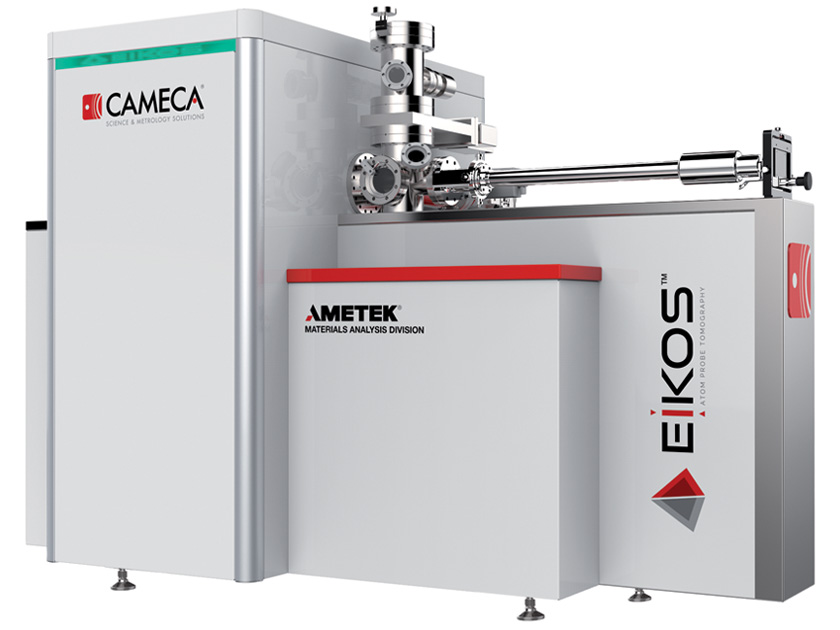

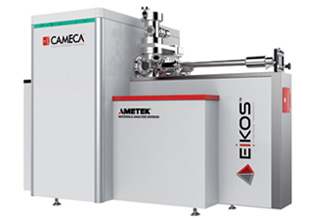

    EIKOS
    기본 EIKOS 시스템에는 탁월한 질량 분해능과 신호 대 노이즈비를 제공하는 반사기 디자인이 포함됩니다. 사전 정렬된 통합 전극으로 인해 사용이 간편하고 신뢰성이 높습니다. 전압 펄싱 시스템은 매우 다양한 금속 애플리케이션에서 매우 높은 데이터 품질을 제공합니다.

    EIKOS-UV
    완벽하게 구성된 EIKOS-UV 시스템에는 기본 EIKOS(전압 펄스, 반사기 기반 기능, 사전 정렬된 카운터 전극)의 탁월한 기능들이 모두 탑재되어 있으며 컴퓨터 제어 집속 스폿 설계와 함께 완전히 통합된 355nm 레이저 펄싱 모듈이 추가되어 더 많은 적용 분야에서 사용할 수 있습니다.

    기본 EIKOS 시스템은 현장에서 EIKOS-UV로 업그레이드할 수 있습니다.

  • EIKOS Atom Probe 기능 알아보기 +

  • 문서 다운로드 +

  • 최근 웨비나 보기 +

    • Introduction to applications & technology of EIKOS-UV

      화요일, 2월 25, 2020

      Optimized or efficiency and simplicity, EIKOS-UV™ delivers all the benefits of Atom Probe Tomography and addresses a wide range of applications: metals, coatings, thin films, ceramics, minerals, functional materials in both academic and commercial environments. Robert Ulfig (CAMECA) presents the main features and functionalities of CAMECA's latest atom probe tomography instrument.
      Register here to view at any time.
      Duration: 23 minutes
      Click here to view
    • An Introduction to IVAS LT

      월요일, 6월 4, 2018

      If you have atom probe data, and are looking for an efficient and free method to conduct analyses, check out IVAS LT. This free version of IVAS software allows you to conduct a number of different tests on your data. Learn more by watching this free, short webinar, and then download your copy of IVAS LT!
      Duration : 19 minutes
      Click here to view
    • Atom Probe Tomography for Additive Manufacturing Part 1

      금요일, 4월 19, 2019

      Intro to AM Methods and Maraging Steel Case Study Deals with maraging steel. Click the link to watch this short webinar with a Q&A session.
      Duration : 23 minutes
      Click here to view
  • 동영상 +

  • 전세계의 APT사용자 +
